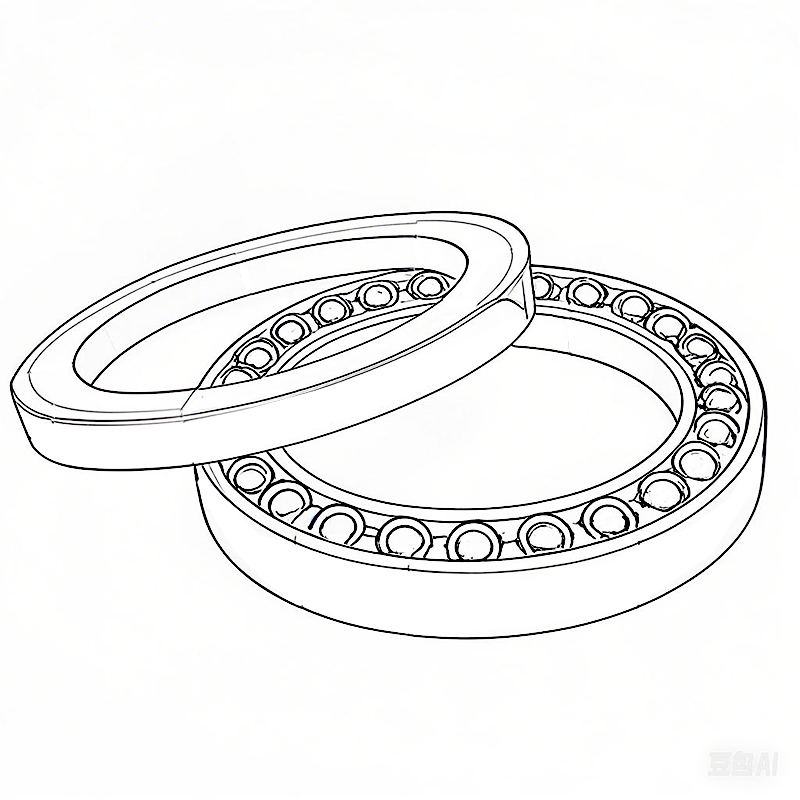

Thrust Ball Bearings: Types, Advantages, and Applications

Types of Thrust Ball Bearings

Based on structure and load direction, thrust ball bearings are classified into two types:

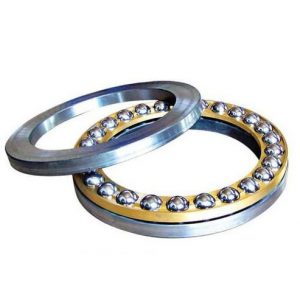

1. Single-Direction Thrust Ball Bearings

• Consist of a housing washer (seat ring), shaft washer (shaft ring), and a ball-cage assembly.
• The housing washer fits into the housing, while the shaft washer mounts onto the shaft.
• Designed to handle unidirectional axial loads — cannot support radial loads.

2. Double-Direction Thrust Ball Bearings

• Feature two shaft washers, one central housing washer, and two ball-cage assemblies (one on each side).
• Capable of handling bidirectional axial forces (both forward and reverse directions).

Advantages of Thrust Ball Bearings

• Low friction, allowing higher speeds (though lower than radial bearings like deep groove ball bearings).
• Simple structure, cost-effective manufacturing, and easy installation/maintenance.
• Precise axial force transmission, ideal for applications requiring high axial positioning accuracy.

Limitations

• Cannot withstand radial loads — must be paired with radial bearings.
• High alignment requirements — misalignment can cause uneven load distribution, reducing lifespan.

Common Applications

• Machine tool spindles & lead screws (handling axial feed forces).
• Automotive transmissions & clutches (absorbing gear-shifting axial forces).
• Pumps & compressors (managing impeller thrust).
• Cranes & elevators (supporting vertical axial loads).
