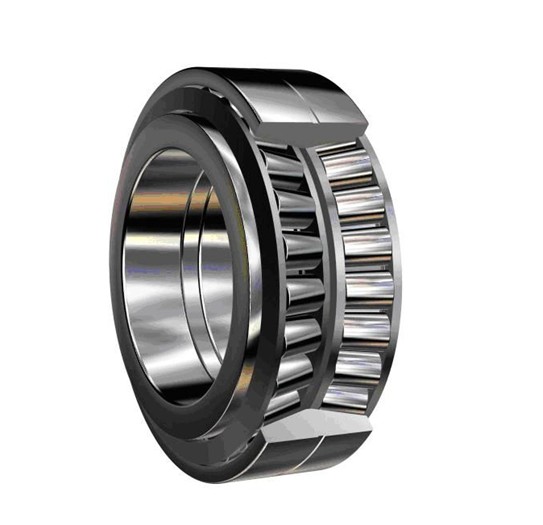

Double Rows Tapered Roller Bearings

Double row tapered roller bearings offer increased radial and axial load capacity in a compact design. Our industrial-grade versions feature:

TDO (Two-Double Outer) and TDI (Two-Double Inner) configurations
Pre-set clearance for simplified installation
Special roller profiles for vibration resistance
Primary applications in rolling mill stands and large gear drives

Double Rows Tapered Roller Bearings

Download Catalog

Model	Dimensions			Basic Load Rating		Weight
Model	d	D	B	Cr	Cor	Weight
350620D1	100	190	62.5	630	1050	14.9
352220X2	100	180	34	445	690	6.51
352220X2-1	100	180	46	670	840	11.6
352221X2	105	190	50	675	1150	13.7
352221X2-1	105	190	50	670	1210	13.8
352122	110	180	42	495	900	9.1
352122/YAG	110	180	42	495	900	9.06
352222X2	110	200	53	680	1150	16.5
352222X2-1	110	200	38	550	850	11.1
352222X3-2RS	110	195	57.658	570	1170	19.3
3506/119X4-2RS	119.062	195.262	57.15	570	1170	18.6
30224/DF	120	215	80	570	890	13.4
350624-1	120	280	83.5	1410	2250	54.5
352024	120	180	38	405	785	7.31
352124	120	200	48	605	1060	12.6
352224	120	215	58	770	1390	19.2
352224X2	120	215	58	770	1390	19.1
352224X2D	120	215	58	770	1390	19.6
1-7006	130	210	29	355	575	8.06
31326/DF	130	280	132	1100	1680	40.9
350626D1	130	235	72.5	885	1560	24.7
352026X2	130	200	42	485	870	9.72
352126	130	210	48	605	1070	13.9
352126X2/C9	130	214	48	605	1070	15.7
352226X2	130	230	64	980	1760	27.4
352926X2	130	180	30	280	565	4.87
97526/EY	130	230	66.5	925	1700	25.6
31328/DF	140	300	70	1210	1842	50.3
352028X2	140	210	42	500	950	8.36
352128	140	225	50	640	1180	15.5
352228X2	140	250	68	1140	2080	31.7
352228X3	140	240	57	825	1660	24.7
32930/DF	150	210	38	455	920	7.99
350630	150	225	45	1100	1690	14.1
350630-1	150	270	45	710	678	24.5
352130	150	250	60	865	1560	25.8
352230X2	150	270	73	1270	2330	39.4
352930X2	150	210	36	385	795	9.32
352930X2D	150	210	36	385	795	9.12
352930X3	150	225	36	385	795	11.8
32032T112/DBC345	160	160	112	715	1450	16
32232/DBC3	160	290	80	1580	2970	48.6
32232/DBC3YA10	160	290	80	1580	2970	53.5
350632D1	160	270	70	1720	2610	26.7
352032X2	160	240	48	745	1330	16.5
352032X2-1	160	240	51	715	1450	16.7
352132X2	160	270	70	965	1720	28.3
352132X2/HA	160	270	65	970	1930	31.8
352132X2/HAC9	160	270	65	970	1930	31.8
352132X2/YB4	160	270	70	965	1720	28.3
352232X2/YA6	160	290	80	1320	2420	46.2
352932X2	160	220	36	415	860	8.15
32934/P59DF	170	230	38	485	1120	9.31
352034X2	170	260	54	755	1550	20.4
352034X2D	170	260	54	755	1550	20
352134	170	280	66	1070	2000	35.6
352934X2	170	230	36	420	890	8.11
370634	170	230	65	450	945	6.79
32036X2AT150/DBC150	180	280	63.5	940	1810	29.4
350636	180	340	83	1700	2860	71.9

1 2 3 4 Next
